Detailed Description
At Jupiter Solutions, we supply heavy-duty filtration solutions for properties across Kenya, Uganda, and Tanzania. The Big Blue 20″ Whole House Water Filter Housing is a high-capacity pre-filter designed to remove sediment, sand, rust, and suspended solids from your main water supply.
Whether you rely on borehole water, rainwater, or municipal supply, this housing acts as the first line of defence – protecting your plumbing, appliances, and downstream filtration systems (UV, carbon filters, water heaters, etc.).
Big Blue refers to the larger 20″ diameter and height – significantly higher dirt-holding capacity than standard 10″ housings.
Why Choose Jupiter Solutions Big Blue 20″ Housing?
| Feature | Benefit for East African Users |
|---|---|
| Accepts standard 20″ cartridges | Easy to find replacements – high dirt-holding capacity |
| Heavy-duty PP construction | Durable, food-safe, corrosion-resistant |
| Single O-ring design | Simple, reliable seal – easy cartridge changes |
| Brass ports (1/2″, 3/4″, 1″ NPT) | Durable, leak-proof connections – choose your size |
| High working pressure (100–150 psi) | Handles East African mains and borehole pressure |
| Works with 5″–40″ cartridges | Flexible – use shorter or longer cartridges as needed |
| Included wrench & bracket | Easy installation and maintenance |
| CE & RoHS certified | Safe materials – international standards |
Technical Specifications (Jupiter Solutions Model)
| Parameter | Details |
|---|---|
| Product name | Big Blue 20″ Whole House Water Filter Housing |
| Type | Whole house pre-filtration |
| Processing type | Mechanical filtration |
| Core component | Filter housing (PP – polypropylene) |
| Housing type | Single O-ring – simple, reliable |
| Compatible cartridges | All standard 5″ – 40″ cartridges (20″ recommended) |
| Port size options | 1/2″, 3/4″, 1″ NPT (brass) |
| Maximum working pressure | 100–150 psi (model dependent) |
| Applicable water source | Municipal water, borehole, rainwater (with appropriate pre-filtration for very dirty water) |
| Clean water flow | Up to 600 L/H (depending on cartridge) |
| Certifications | CE, RoHS |
| Colour | Transparent / White (other colours optional) |
| Machinery test report | Provided |
| Video outgoing inspection | Provided |
| Weight | 10 kg |
| Package dimensions | 15×15×75 cm |
| Gross weight | 10 kg |

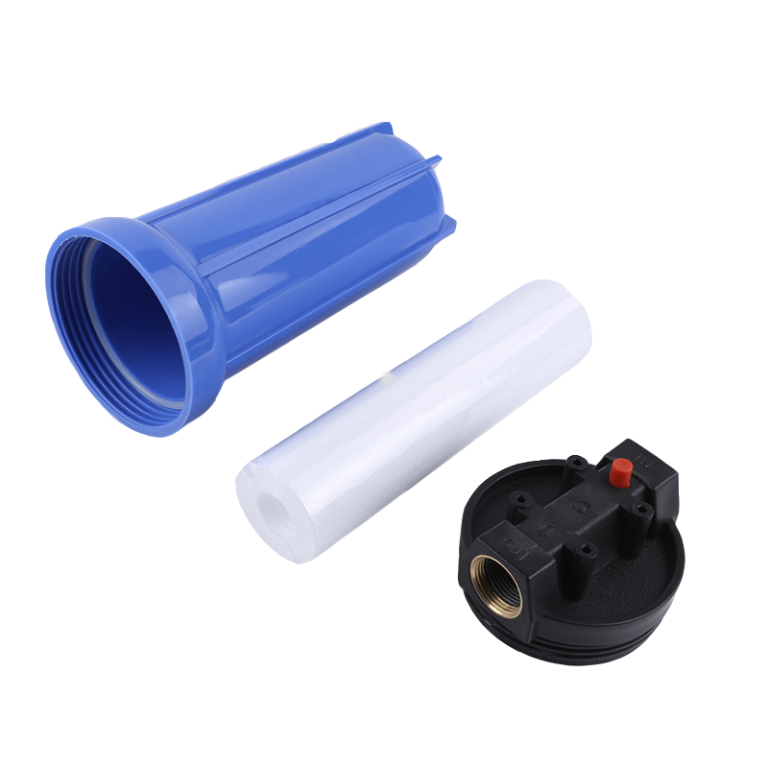

What’s Included in the Box?
✅ Big Blue 20″ filter housing (heavy-duty PP)
✅ Brass ports (your choice of 1/2″, 3/4″, or 1″ NPT)
✅ Mounting bracket
✅ Wrench for cartridge changes
✅ Small accessories kit
Note: Cartridges sold separately – choose based on your water quality needs (see below).
